Product range:

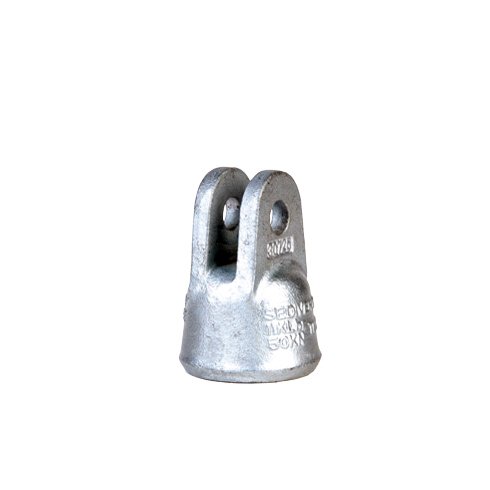

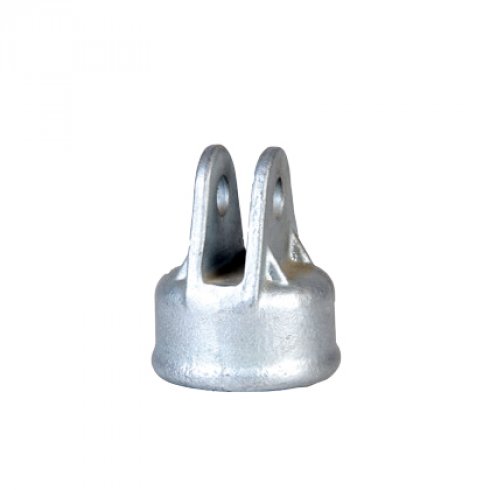

The Type：Caps, Flanges, Bases,Composite Insulator end fittings
Cast components of railway insulators and other product
The Ball & Socket Size：（11-32）
The Mechanical Load Rating：40-840KN
The Tube reference：023-550
With or without Zinc Collar（For AC or DC Insulator）
Surface:
Hot-dipped Galvanizing according to ISO1461（IEC383-1983）
Material：Ductile iron, Malleable iron
Mechanical Class：40-840KN
Coating：Normal galvanizing、Reinforced galvanizing、Super reinforced galvanizing
Application：Insulator caps with zinc ring are specially used for direct current line
