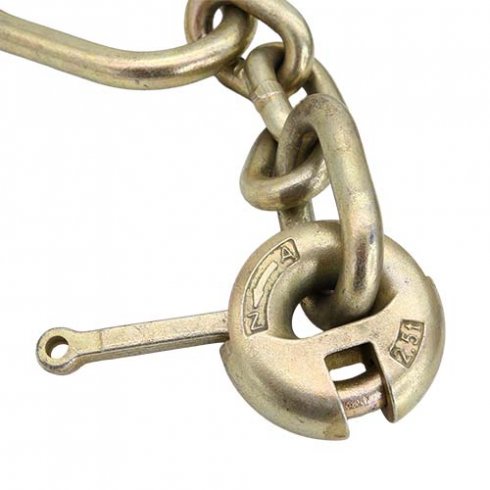

The Concrete Panel lifting clutches consists of a shackle and a clutch head.
1. Description
1)Ensuring safety remains paramount in the lifting of precast or tilt-up concrete elements. Our Concrete Panel lifting clutches are meticulously designed for this purpose, comprising a shackle and a clutch head.
2) The shackle boasts unrestricted movement in all directions, while the clutch head integrates a locking bolt that securely engages with an anchor embedded within a concrete recess. Notably, the locking bolt undergoes corrosion protection measures.
2. Detail Information
| NAME | MATERIAL | Q345D / Q355D / CM490 / G30CrMoV / Customizable | |||||
| HULK Metal Ring Clutch | SURFACE TREATMENT | Electro-galvanized | |||||
| SAFETY FACTOR | ≥ 5 | ||||||
| CERTIFICATE | ISO9001 / CE | ||||||
| SWL (tons) | CODE | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | |
Specification | 2.5 | custom | |||||
| 5.0 | |||||||
| 10.0 | |||||||
| 26.0 | |||||||
