Product parameters
| Spherical Head Lifting Anchors |
| MATERIAL | 20Mn2 / Q345D / CM490 / Stainless Steel / Customizable |
| SURFACE TREATMENT | Raw Black / Electro-galvanized / Hot-dip Galvanized |
| SAFETY FACTOR | ≥ 3 |
| CERTIFICATE | ISO9001 / CE |

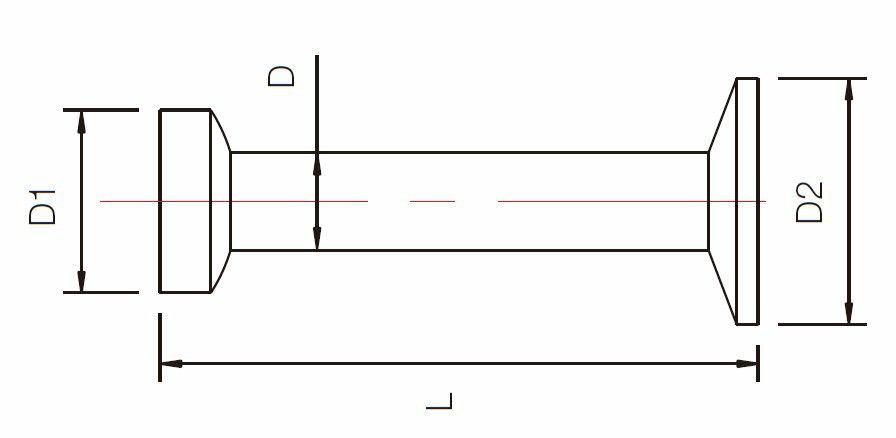

| SWL (tons) | CODE | LENGTH (mm) | D (mm) | WEIGHT (kg/pc) |
| 1.3 | HM-P-013035 | 35 | 10 | 0.04 |
| HM-P-013040 | 40 | 10 | 0.05 |
| HM-P-013045 | 45 | 10 | 0.05 |
| HM-P-013050 | 50 | 10 | 0.05 |
| HM-P-013055 | 55 | 10 | 0.06 |
| HM-P-013065 | 65 | 10 | 0.06 |
| HM-P-013075 | 75 | 10 | 0.07 |
| HM-P-013085 | 85 | 10 | 0.07 |
| HM-P-013120 | 120 | 10 | 0.09 |
| HM-P-013170 | 170 | 10 | 0.12 |
| HM-P-013240 | 240 | 10 | 0.17 |
| 2.5 | HM-P-025045 | 45 | 14 | 0.11 |
| HM-P-025055 | 55 | 14 | 0.12 |
| HM-P-025065 | 65 | 14 | 0.14 |
| HM-P-025070 | 70 | 14 | 0.14 |
| HM-P-025075 | 75 | 14 | 0.15 |
| HM-P-025085 | 85 | 14 | 0.16 |
| HM-P-025090 | 90 | 14 | 0.16 |
| HM-P-025095 | 95 | 14 | 0.17 |
| HM-P-025100 | 100 | 14 | 0.18 |
| HM-P-025115 | 115 | 14 | 0.19 |
| HM-P-025120 | 120 | 14 | 0.20 |
| HM-P-025125 | 125 | 14 | 0.20 |
| HM-P-025140 | 140 | 14 | 0.21 |
| HM-P-025170 | 170 | 14 | 0.26 |
| HM-P-025210 | 210 | 14 | 0.30 |
| HM-P-025240 | 240 | 14 | 0.33 |
| HM-P-025280 | 280 | 14 | 0.38 |
| HM-P-025480 | 480 | 14 | 0.64 |
| 4.0 | HM-P-040055 | 55 | 18 | 0.24 |
| HM-P-040065 | 65 | 18 | 0.25 |
| HM-P-040070 | 70 | 18 | 0.26 |
| HM-P-040075 | 75 | 18 | 0.27 |
| HM-P-040080 | 80 | 18 | 0.28 |
| HM-P-040100 | 100 | 18 | 0.32 |
| HM-P-040110 | 110 | 18 | 0.34 |
| HM-P-040140 | 140 | 18 | 0.40 |
| HM-P-040150 | 150 | 18 | 0.42 |
| HM-P-040160 | 160 | 18 | 0.44 |
| HM-P-040170 | 170 | 18 | 0.46 |
| HM-P-040180 | 180 | 18 | 0.48 |
| HM-P-040210 | 210 | 18 | 0.54 |
| HM-P-040240 | 240 | 18 | 0.60 |
| HM-P-040340 | 340 | 18 | 0.80 |
| HM-P-040420 | 420 | 18 | 0.96 |
| 5.0 | HM-P-050055 | 55 | 20 | 0.27 |
| HM-P-050060 | 60 | 20 | 0.29 |
| HM-P-050065 | 65 | 20 | 0.30 |
| HM-P-050075 | 75 | 20 | 0.32 |
| HM-P-050080 | 80 | 20 | 0.33 |
| HM-P-050085 | 85 | 20 | 0.34 |
| HM-P-050090 | 90 | 20 | 0.36 |
| HM-P-050095 | 95 | 20 | 0.37 |
| HM-P-050100 | 100 | 20 | 0.38 |
| HM-P-050110 | 110 | 20 | 0.40 |
| HM-P-050120 | 120 | 20 | 0.44 |
| HM-P-050140 | 140 | 20 | 0.49 |
| HM-P-050150 | 150 | 20 | 0.51 |
| HM-P-050160 | 160 | 20 | 0.52 |
| HM-P-050165 | 165 | 20 | 0.53 |
| HM-P-050170 | 170 | 20 | 0.54 |
| HM-P-050180 | 180 | 20 | 0.57 |
| HM-P-050210 | 210 | 20 | 0.64 |
| HM-P-050240 | 240 | 20 | 0.71 |
| HM-P-050250 | 250 | 20 | 0.74 |
| HM-P-050300 | 300 | 20 | 0.85 |
| HM-P-050340 | 340 | 20 | 0.95 |
| HM-P-050480 | 480 | 20 | 1.28 |
| HM-P-050540 | 540 | 20 | 1.42 |
| HM-P-050680 | 680 | 20 | 1.76 |
| 7.5 | HM-P-075085 | 85 | 24 | 0.57 |
| HM-P-075095 | 95 | 24 | 0.60 |
| HM-P-075100 | 100 | 24 | 0.62 |
| HM-P-075105 | 105 | 24 | 0.64 |
| HM-P-075120 | 120 | 24 | 0.68 |
| HM-P-075140 | 140 | 24 | 0.75 |
| HM-P-075150 | 150 | 24 | 0.79 |
| HM-P-075160 | 160 | 24 | 0.82 |
| HM-P-075165 | 165 | 24 | 0.84 |
| HM-P-075170 | 170 | 24 | 0.86 |
| HM-P-075200 | 200 | 24 | 0.96 |
| HM-P-075240 | 240 | 24 | 1.10 |
| HM-P-075300 | 300 | 24 | 1.31 |
| HM-P-075340 | 340 | 24 | 1.44 |
| HM-P-075540 | 540 | 24 | 2.15 |
| HM-P-075680 | 680 | 24 | 2.60 |
| 10.0 | HM-P-100100 | 100 | 28 | 0.82 |
| HM-P-100110 | 110 | 28 | 0.85 |
| HM-P-100115 | 115 | 28 | 0.87 |
| HM-P-100120 | 120 | 28 | 0.90 |
| HM-P-100135 | 135 | 28 | 0.96 |
| HM-P-100140 | 140 | 28 | 0.99 |
| HM-P-100150 | 150 | 28 | 1.03 |
| HM-P-100160 | 160 | 28 | 1.08 |
| HM-P-100165 | 165 | 28 | 1.10 |
| HM-P-100170 | 170 | 28 | 1.12 |
| HM-P-100180 | 180 | 28 | 1.17 |
| HM-P-100200 | 200 | 28 | 1.27 |
| HM-P-100210 | 210 | 28 | 1.31 |
| HM-P-100220 | 220 | 28 | 1.36 |
| HM-P-100240 | 240 | 28 | 1.46 |
| HM-P-100250 | 250 | 28 | 1.50 |
| HM-P-100340 | 340 | 28 | 1.92 |
| HM-P-100500 | 500 | 28 | 2.67 |
| HM-P-100540 | 540 | 28 | 2.86 |
| HM-P-100650 | 650 | 28 | 3.38 |
| HM-P-100680 | 680 | 28 | 3.52 |
| 15.0 | HM-P-150110 | 110 | 34 | 1.60 |
| HM-P-150120 | 120 | 34 | 1.67 |
| HM-P-150140 | 140 | 34 | 1.81 |
| HM-P-150160 | 160 | 34 | 1.95 |
| HM-P-150165 | 165 | 34 | 1.98 |
| HM-P-150180 | 180 | 34 | 2.09 |
| HM-P-150200 | 200 | 34 | 2.22 |
| HM-P-150210 | 210 | 34 | 2.30 |
| HM-P-150240 | 240 | 34 | 2.52 |
| HM-P-150300 | 300 | 34 | 2.94 |
| HM-P-150340 | 340 | 34 | 3.23 |
| HM-P-150400 | 400 | 34 | 3.65 |
| HM-P-150825 | 825 | 34 | 6.68 |
| HM-P-150840 | 840 | 34 | 6.79 |
| 20.0 | HM-P-200100 | 100 | 38 | 1.90 |
| HM-P-200165 | 165 | 38 | 2.48 |
| HM-P-200180 | 180 | 38 | 2.61 |
| HM-P-200200 | 200 | 38 | 2.79 |
| HM-P-200240 | 240 | 38 | 3.15 |
| HM-P-200250 | 250 | 38 | 3.24 |
| HM-P-200300 | 300 | 38 | 3.68 |
| HM-P-200340 | 340 | 38 | 4.04 |
| HM-P-200500 | 500 | 38 | 5.46 |
| HM-P-200750 | 750 | 38 | 7.69 |
| HM-P-2001000 | 1000 | 38 | 9.92 |
| 32.0 | HM-P-320200 | 200 | 50 | 5.66 |
| HM-P-320250 | 250 | 50 | 6.40 |
| HM-P-320260 | 260 | 50 | 6.57 |
| HM-P-320280 | 280 | 50 | 6.87 |
| HM-P-320320 | 320 | 50 | 7.50 |
| HM-P-320500 | 500 | 50 | 10.26 |
| HM-P-320700 | 700 | 50 | 13.35 |
| HM-P-320870 | 870 | 50 | 15.96 |
| HM-P-3201000 | 1000 | 50 | 17.97 |
| HM-P-3201200 | 1200 | 50 | 21.05 |
Features of HULK Metal Dog Bone Lifting Anchors
Higher Quality Dog Bone Lifting Anchors:
ISO 9001 factory:
Every order of Dog Bone Lifting Anchors you place is produced in an ISO 9001-certified factory.
Professional testing team and advanced testing instruments:
Our quality inspection team will inspect the raw materials to ensure that the products manufactured from it can meet your quality requirements. The testing equipment we equipped can inspect Dog Bone Lifting Anchors more than 3 times the Safety factors and can complete the breaking inspection. We can also test the product's size, shape, coating thickness, and other attributes to meet your requirements.
Strict inspection process:
After 20 years of development, we have established a strict inspection process to ensure that you can purchase Dog Bone Lifting Anchors with higher quality from HULK Metal.
Can pass CE certification and quality assurance service.
We have manufactured products that can pass CE certification for hundreds of buyers, and we also provide comprehensive quality assurance services. You can buy Dog Bone Lifting Anchors at HULK Metal with confidence
Dog Bone Lifting Anchors with Shorter Lead Time:
ADVANCED PRODUCTION EQUIPMENT:
We adopt a hot forging production line with a higher degree of automation. We can realize the integrated production of blanking, heating, die forging, finishing, and surface treatment, and the production efficiency of Dog Bone Lifting Anchors is higher.
EXPERIENCED PRODUCTION TEAM:
An experienced production team can operate and manage equipment more skillfully, improve the yield rate, and shorten the production time of orders. We put employee safety first, followed by your product quality, followed by production efficiency.
RIGOROUS PRODUCTION PROCESS:
Under our strict management, we can still finish your Dog Bone Lifting Anchors faster.
THOUGHTFUL FREIGHT SERVICE:
We can provide professional freight consulting services to help you find a freight company that is safer, faster, and more cost-effective so that you can receive the goods faster.
Dog Bone Lifting Anchors for Better Service:
DEDICATED AND PROFESSIONAL CUSTOMER SERVICE TEAM:
After you place an order, we will set up a dedicated customer service team to provide you with technical, procurement, production, packaging, freight, and after-sales services.
24/7 SERVICE:
They have enough experience to provide you with excellent service. Any questions you may have will be resolved promptly and efficiently.
TRACKING AND FEEDBACK:
They will help you track the production of the order and feedback on the production progress of Dog Bone Lifting Anchors to you in the form of pictures and videos. You can also participate in production without being physically present by video calling.
QUALITY ASSURANCE SERVICES:
We will provide quality assurance service and be responsible for the quality of each Dog Bone Lifting Anchors. You can contact us if there are any quality problems with the purchased Dog Bone Lifting Anchors, and we will give you a satisfactory solution.
Cost-Controllable Dog Bone Lifting Anchors:
HIGH QUALITY IS FUNDAMENTAL:
The first consideration of our production solution is to meet your quality requirements, followed by completing the delivery on time or faster, and finally completing the first two points under the condition of cost control.
ALL-ROUND CONTROL OF COSTS:
We will choose more suitable raw materials, arrange a more reasonable production process, conduct stricter and more effective quality inspections, and complete your order with a sustainable development perspective and a controllable cost.
CREATE YOUR BRAND:
In addition to controlling costs, we also hope to help you create brand value. We will print your Logo on the product and package to let your customers know you better.
