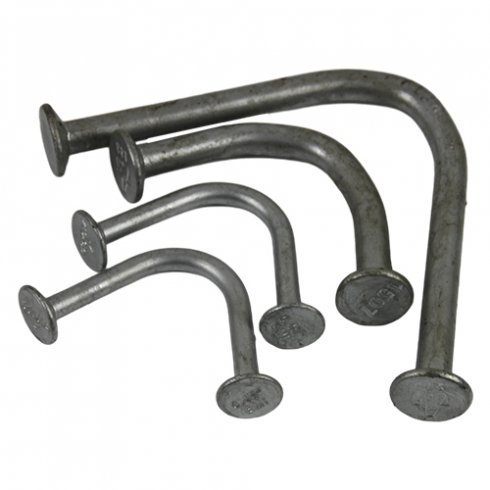

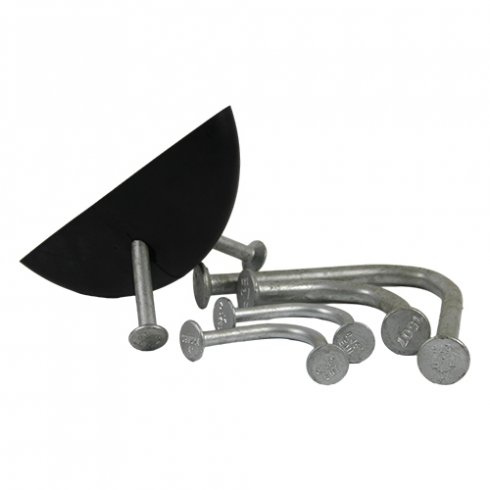

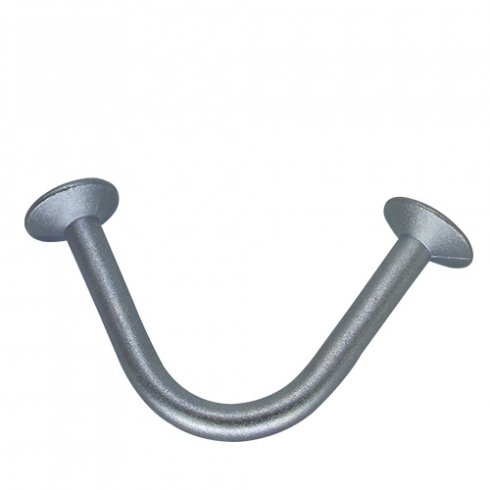

LIfting Utility V Anchor

LIfting Utility V Anchor

Features:

LIfting Utility V Anchor, essential precast concrete accessories for secure and efficient lifting applications

Inquire Now

Product parameters

1. Description

LIfting Utility V Anchor, essential precast concrete accessories for secure and efficient lifting applications. Crafted with meticulous attention to detail, these anchors offer robust support and stability during the lifting process, ensuring the safety and integrity of your precast concrete elements. Designed for ease of use and compatibility with diverse construction requirements, our lIfting utility V anchor exemplify excellence in performance and reliability. Elevate your precast projects with confidence, relying on the strength and dependability of our cutting-edge lifting solutions.

2. Detail Information

MATERIAL	20Mn2 / Q345D / CM490 / Stainless Steel / Customizable
SURFACE TREATMENT	Raw Black / Electro-galvanized / Hot-dip Galvanized
SAFETY FACTOR	≥ 3
CERTIFICATE	ISO9001 / CE

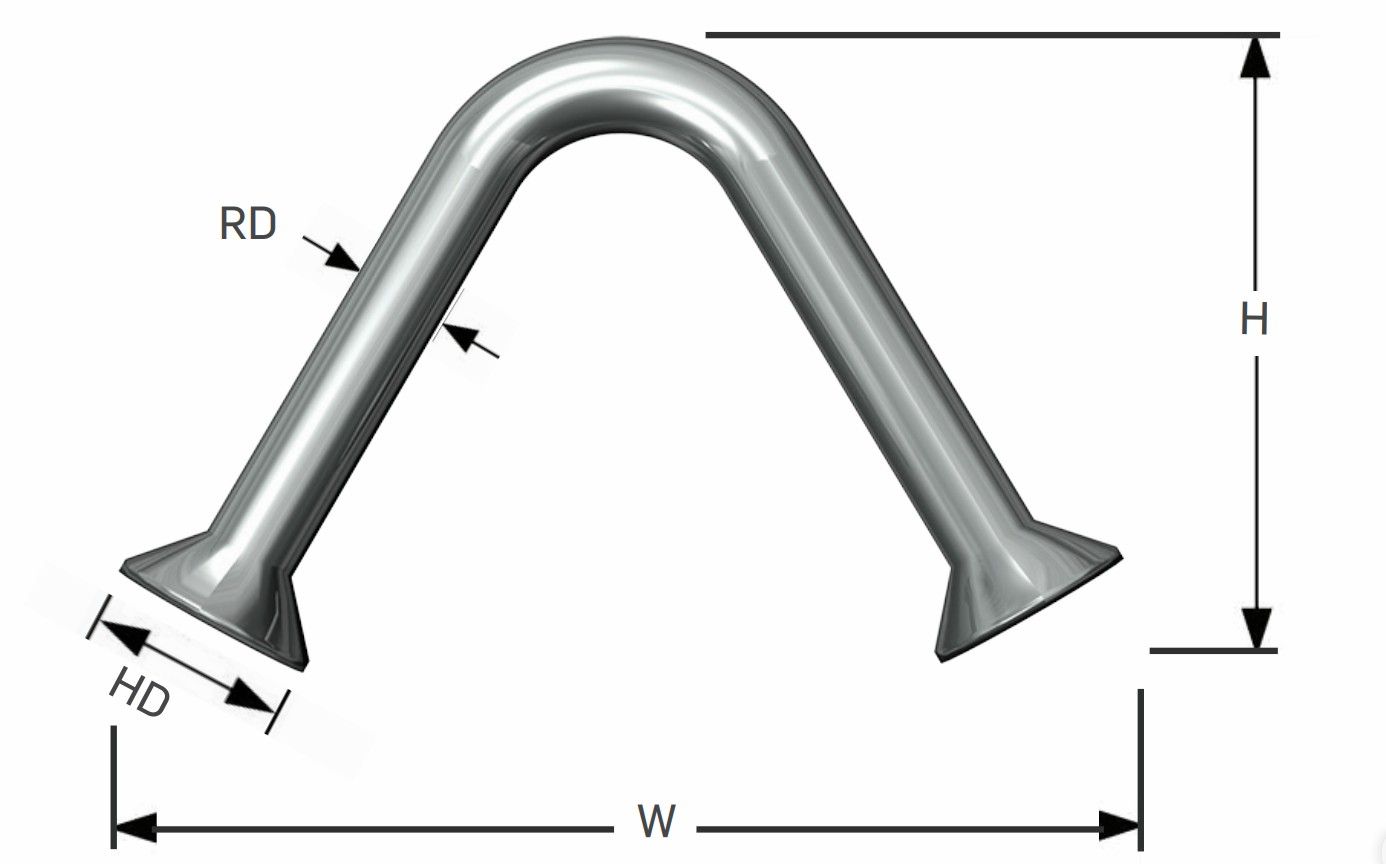

SWL (tons)	CODE	H(mm)	w(mm)	RD(mm)	WEIGHT(kg/pc)
0.8	HM-U-008080	79.4	134.3	11.4	0.18
1.4	HM-U-014080	79.4	142.9	17	0.49
1.8	HM-U-018095	95.25	149.5	11.4	0.21
2.0	HM-U-020120	120.6	178.9	11.4	0.258
2.5	HM-U-025170	171.5	236.6	11.4	0.356
3.5	HM-U-035095	95.25	160.9	17	0.56
5.0	HM-U-050120	120.6	189.7	17	0.66
7.5	HM-U-075170	171.5	247	17	0.87
