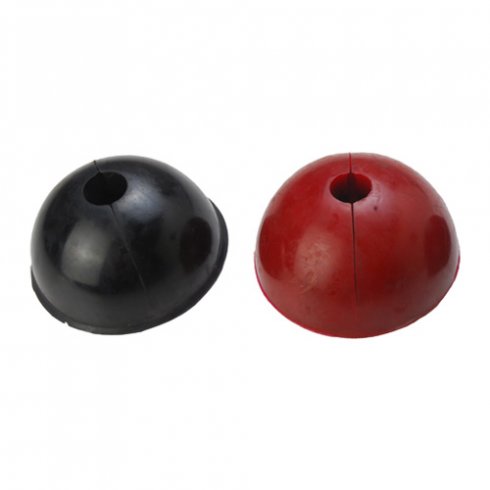

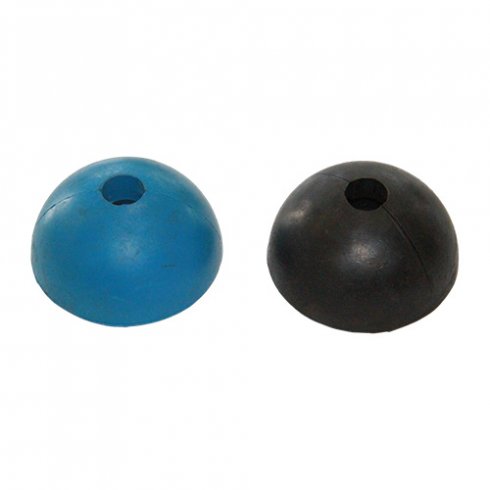

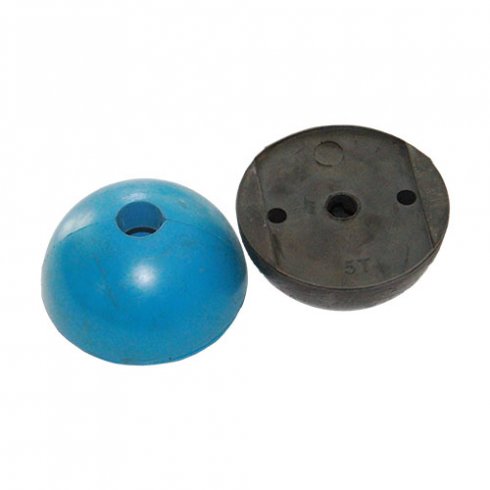

The Rubber Recess Former precision-engineers recesses for Lifting Clutches during casting. Crafted from specialized rubber formulations, HULK Metal Rubber Recess Former ensures peak performance with pure materials.
1. Description
1)The Rubber Recess Former precision-engineers recesses for Lifting Clutches during casting.
2)Crafted from specialized rubber formulations, HULK Metal Rubber Recess Former ensures peak performance with pure materials.
3)Each Former's dimensions are tailor-made to match specific lifting clutch load classifications, reducing potential errors and enhancing safety during application.
2. Detail Information
| MATERIAL | Rubber / Customizable | ||

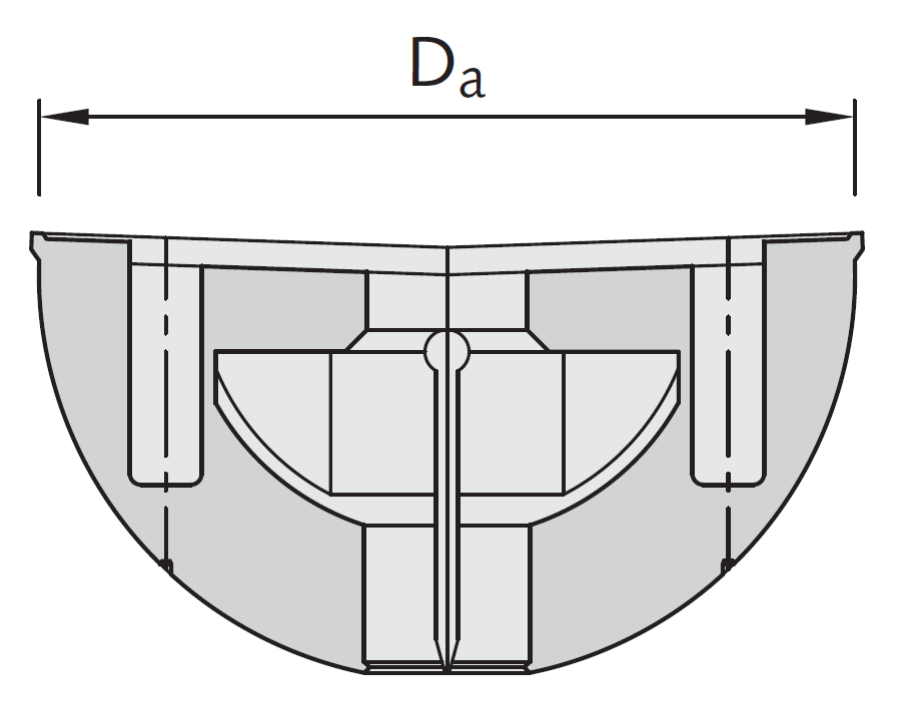

| SWL (tons) | CODE | DIAMETER(mm) | WEIGHT with Bolt(kg/pc) |
| 1.3 | HM-RRF-013 | 60 | 0.1 |
| 2.5 | HM-RRF-025 | 74 | 0.2 |
| 5.0 | HM-RRF-050 | 94 | 0.4 |
| 7.5 | HM-RRF-075 | 118 | 0.6 |
| 10 | HM-RRF-100 | 118 | 0.6 |
| 15 | HM-RRF-150 | 160 | 1.4 |
| 20 | HM-RRF-200 | 160 | 1.5 |
| 32 | HM-RRF-320 | 214 | 3.7 |
